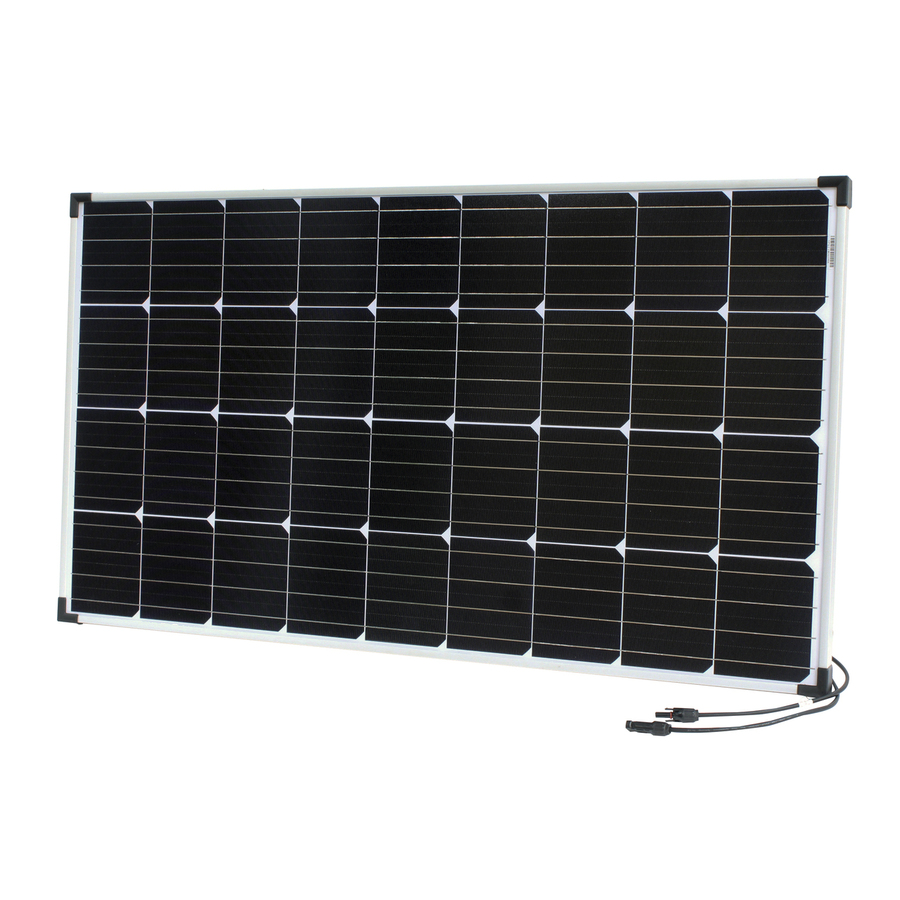

12V 170W Monocrystalline Solar Panel
12V 170W Monocrystalline Solar Panel
12V 170W Monocrystalline Solar Panel

CAT. No. ZM9065

12V 170W Monocrystalline Solar Panel
product image thumb
product image thumb

12V 170W Monocrystalline Solar Panel

$299
Smaller, more efficient and more affordable than ever, this durable panel offers 17.0W output power and comes fitted with industry standard MC4 connectors.

Out of Stock

Description

High performance monocrystalline panels designed for environmental conditions with a durable anodised aluminium frame and 3.2mm low iron tempered glass. Junction box included.

    Specifications

    Solar Panel

    Bypass Diode Included
    Current at Power Max
    		 9.02A
    Solar panel type
    		 monocrystalline
    Voltage at Power Max
    		 18.85V
    Cover Material
    		 tempered glass
    Power Connector
    		 4mm PV Connector (MC4 Style)
    Open Circuit Voltage
    		 22.62V
    Short Circuit Current
    		 9.47A

    DC Voltage Rating

    DC Voltage
    		 12V

    Power Rating

    Power tolerance
    		 3%
    Continuous Power
    		 170W

    Product Dimensions

    Length
    		 1480mm
    Height
    		 35mm
    Width
    		 680mm
    Weight
    		 10.6kg

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 151.5cm
    Packaged Width
    		 69cm
    Packaged Weight
    		 11.888kg
    Packaged Volume
    		 52.2675l
    Packaged Height
    		 5cm

    Downloads

    ZM9065-dataSheetMain.pdf
