CAT. No. ZM9103

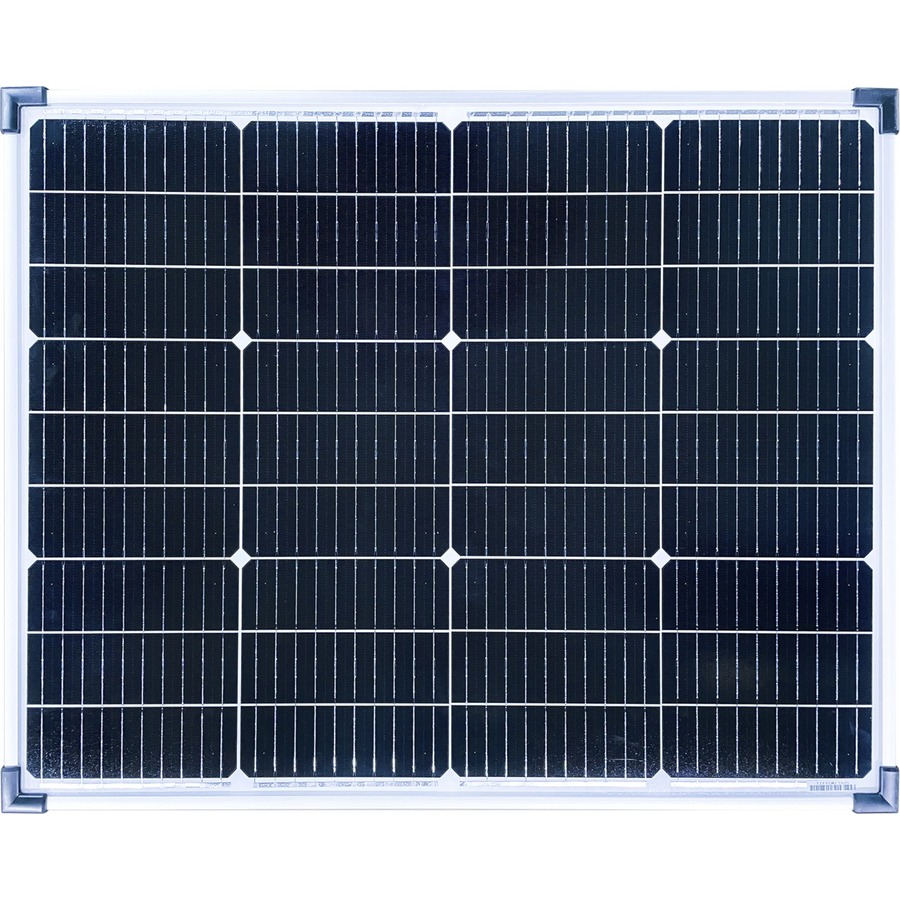

12V 80W Monocrystalline Solar Panel
product image thumb

12V 80W Monocrystalline Solar Panel

$169
Smaller, more efficient and more affordable than ever, this durable panel offers 80W output power and comes fitted with industry standard MC4 connectors.
Available

Description

This high quality panel has much higher efficiency and power output compared to previous models with a more compact size. This means you can get more power without having to add more panels, brackets, and hardware to get more power from your solar installation. Provides excellent performance under low light environments, producing 2-3% more power and a higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel, which features an anti-reflective and self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and bypass diodes stop the panel from overheating and suffering from the “hot spot effect”. PV connectors on a 900mm lead make them easy to install. A fantastic panel with minimal ongoing maintenance and compatible with industry-standard inverters and mounting systems.

25 year limited warranty
All Powertech monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.

    Specifications

    Solar Panel


    Bypass Diode Included
    Current at Power Max
    4.55A
    Solar panel type
    monocrystalline
    Voltage at Power Max
    17.6V
    Cover Material
    tempered glass
    Power Connector
    4mm PV Connector (MC4 Style)
    Open Circuit Voltage
    21.6V
    Short Circuit Current
    4.9A

    DC Voltage Rating


    DC Voltage
    12V

    Power Rating


    Continuous Power
    80W

    Product Availability


    Availability
    Stocked item

    Product Dimensions


    Length
    770mm
    Cable length
    900m
    Width
    610mm
    Depth
    35mm
    Weight
    5.9kg

    Packaged Dimensions


    Packaged Length
    80.5cm
    Packaged Width
    63.5cm
    Packaged Weight
    6.13kg
    Packaged Volume
    30.6705l
    Packaged Height
    6cm
