74LS47 BCD - 7 segment Decoder IC
74LS47 BCD - 7 segment Decoder IC

CAT. No. ZS5047

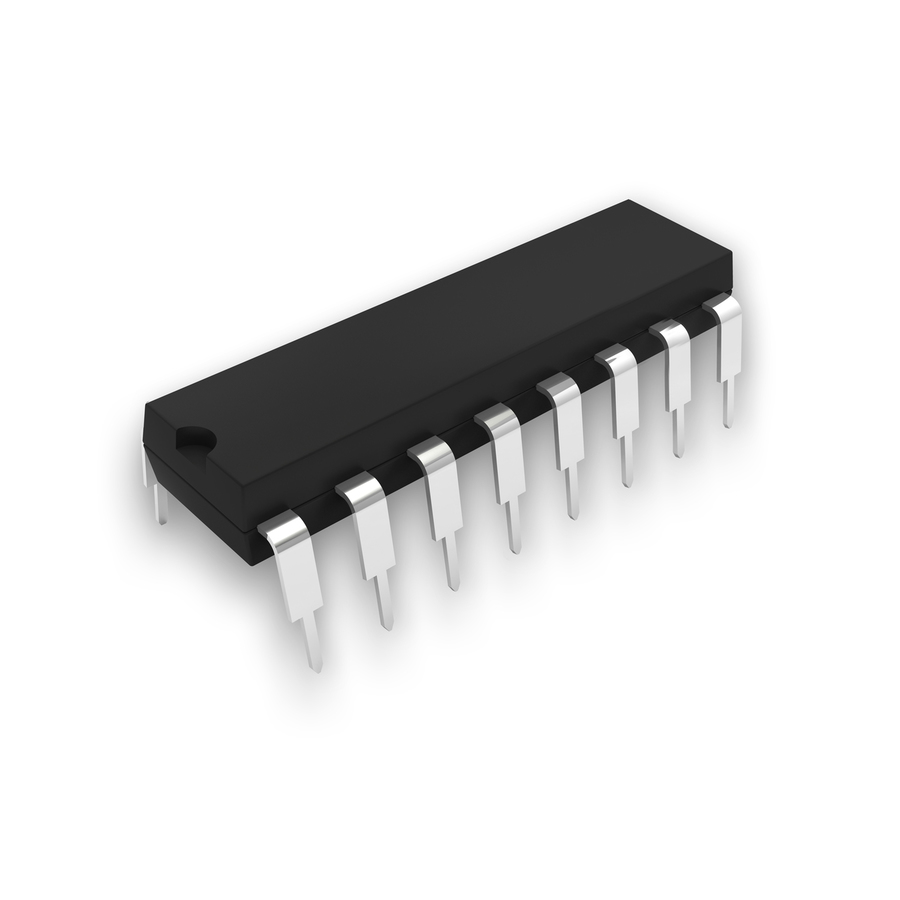

74LS47 BCD - 7 segment Decoder IC
product image thumb

74LS47 BCD - 7 segment Decoder IC

$2.25
Type Pins Description74LS47 16 BCD to 7 seg decoder/driver (oc)...

Out of Stock

Description

Type Pins Description
74LS47 16 BCD to 7 seg decoder/driver (oc)

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.002l
    Packaged Height
    		 1cm

    Integrated Circuit (IC)

    IC Static Sensitive
    IC Pin Count
    		 16 units
    IC op amp
    IC supply voltage
    		 5V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    Active number of legs
    		 16 count
    max temperature
    		 70°C
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZS5047-dataSheetMain.pdf
