MPF102 N-channel J-FET
MPF102 N-channel J-FET

CAT. No. ZT2262

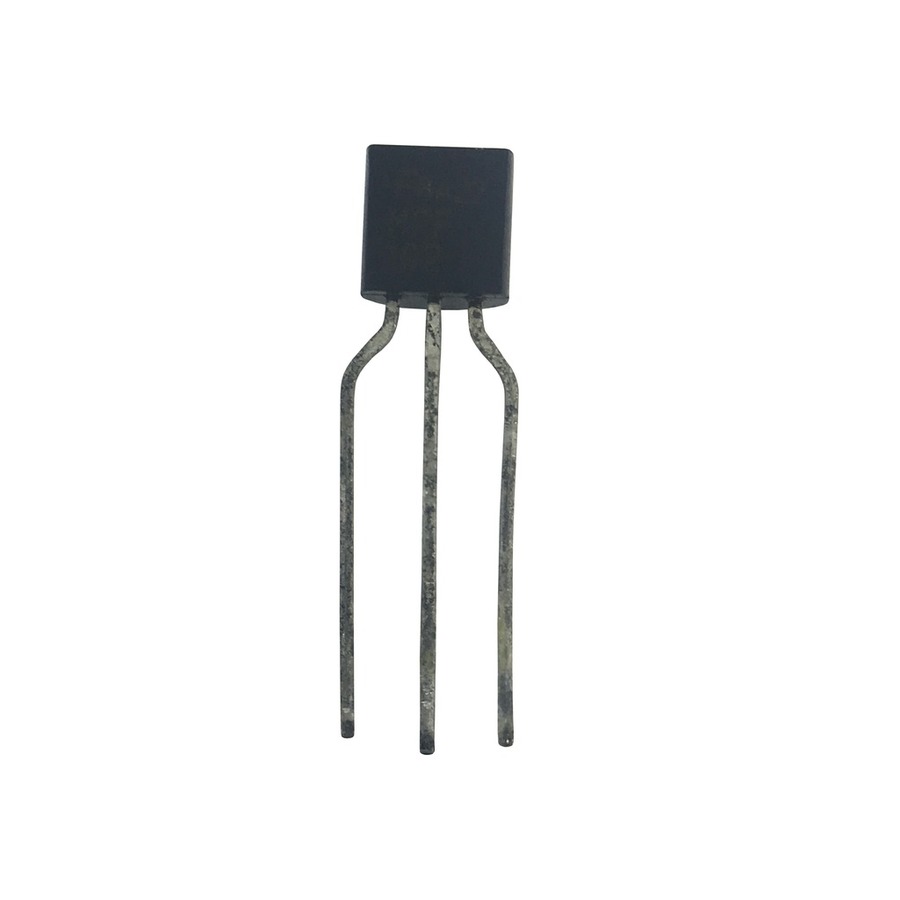

MPF102 N-channel J-FET
product image thumb

MPF102 N-channel J-FET

$3.7
From our range of components and electromechanical semiconductors to suit your circuit.
Available

Description

MPF102 - N channel JFET 25V 10mA JFET To-92

    Specifications

    Product Dimensions

    Height
    		 4.5mm
    Width
    		 4.6mm
    Dimension details
    		 Body Dimensions, Lead Length
    Depth
    		 3.4mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.3cm

    Internal or Sub-part Dimensions

    Length
    		 13mm
    Dimension details
    		 Body Dimensions, Lead Length
    Diameter
    		 0.5mm

    Transistor Field Effect Transistor

    FET current
    		 10mA
    FET polarity
    		 N channel
    FET voltage
    		 25V

    Active Transistors

    Type of Transformer
    		 JFET
    Transistor Maximum Power
    		 350mW
    Transistor Application
    		 RF
    Transistor Package
    		 TO-92
    Ic
    		 20mA
    vC
    		 25V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    diameter of leg
    		 0.5mm
    minimum temperature
    		 -65°C
    Active number of legs
    		 3 count
    max temperature
    		 150°C
    Active case colour
    		 Black
    Active connector type
    		 Solder Legs
    leg distance
    		 13mm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZT2262-dataSheetMain.pdf
