78L12 +12V 100mA Voltage Regulator TO-92
78L12 +12V 100mA Voltage Regulator TO-92

CAT. No. ZV1542

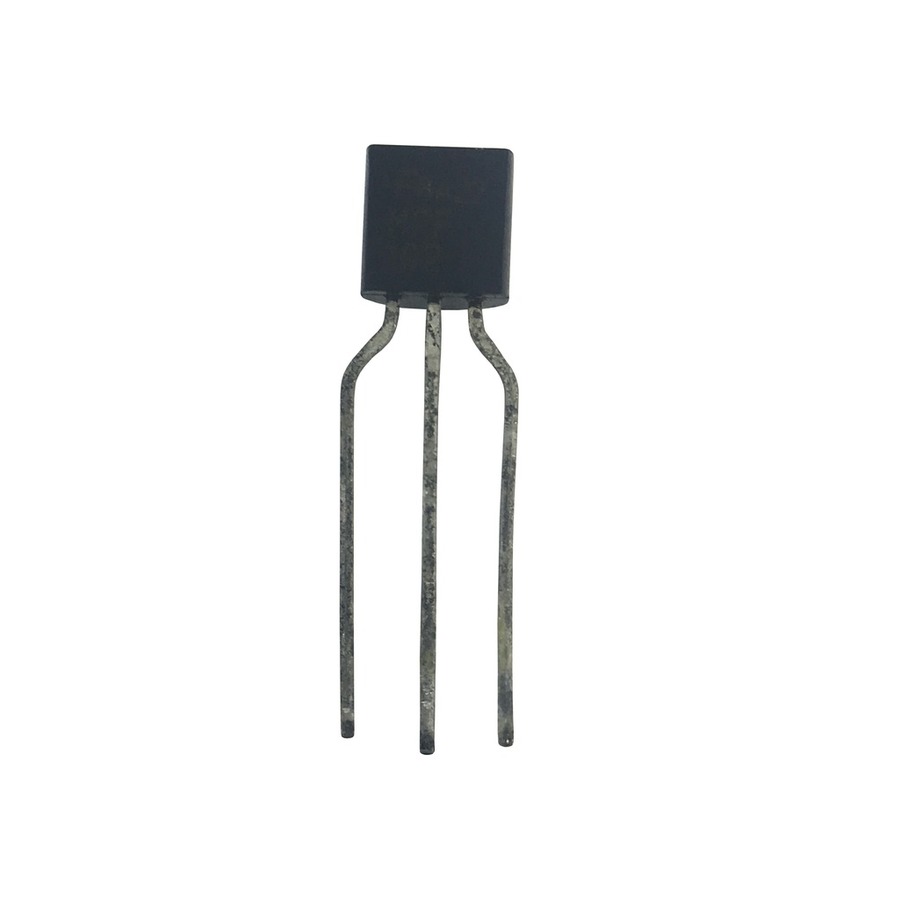

78L12 +12V 100mA Voltage Regulator TO-92
product image thumb

78L12 +12V 100mA Voltage Regulator TO-92

$1.65
Type Volt Amp Case78L12 +12V 100mA TO-92.
Available

Description

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.

TYPE: 78L12

VOUT: 12V

IOUT: 100mA

CASE: TO-92


    Specifications

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.3cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 3.0E-4l
    Packaged Height
    		 2cm

    Active voltage regulator

    Regulator maximum current
    		 100mA
    Voltage drop
    		 2.5V min
    Regulator polarity
    		 Positive
    Regulator package
    		 TO-92
    Regulator input voltage
    		 14.5V
    Regulator output voltage
    		 12V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    minimum temperature
    		 -40°C
    Active number of legs
    		 3 count
    max temperature
    		 85°C
    component package
    		 square pack
    Active case colour
    		 black
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZV1542-dataSheetMain.pdf
