LM3940 Low Dropout Regulator
LM3940 Low Dropout Regulator

CAT. No. ZV1565

LM3940 Low Dropout Regulator

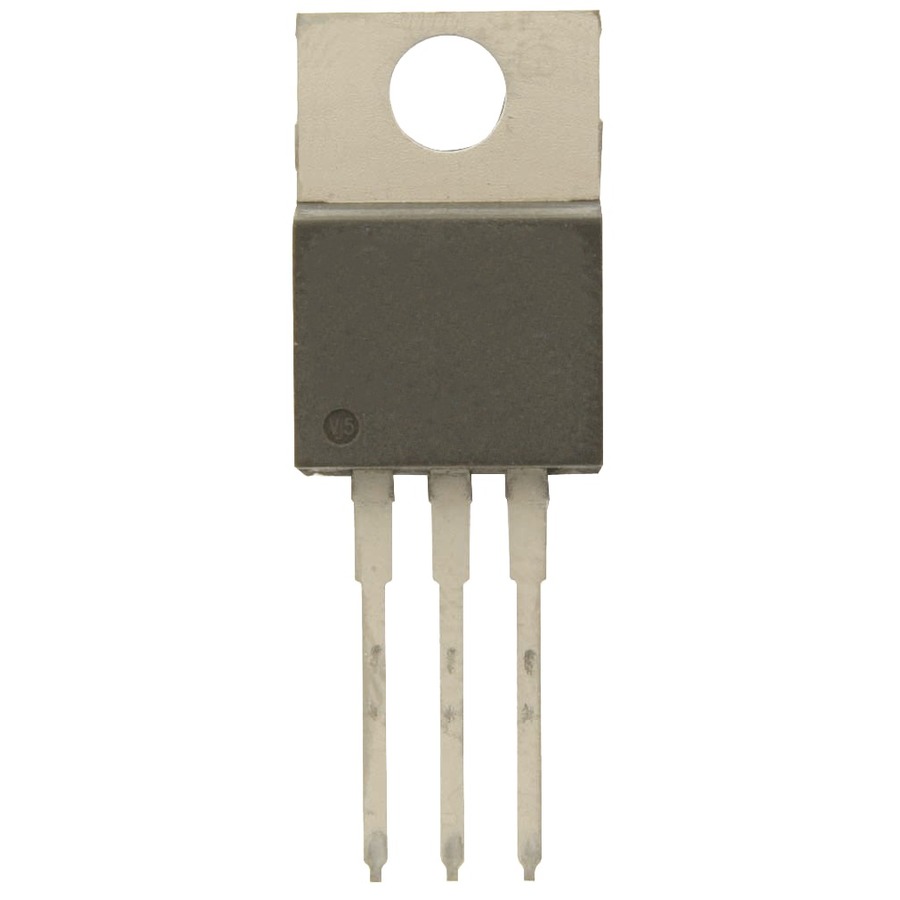

product image thumb

LM3940 Low Dropout Regulator

$4.95
From our range of components and electromechanical semiconductors to suit your circuit.
Available

Description

Low Dropout Regulator LM3940

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0015l
    Packaged Height
    		 0.5cm

    Active voltage regulator

    Regulator maximum current
    		 1A
    Voltage drop
    		 500mV 1A
    Regulator polarity
    		 Positive
    Regulator package
    		 TO-220
    Regulator input voltage
    		 4.5V-5.5V
    Regulator output voltage
    		 3.3V
    Regulator type
    		 LM-3940

    Active Component

    Active mount type
    		 Through Hole
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Projects

    ZV1565-dataSheetMain.pdf
