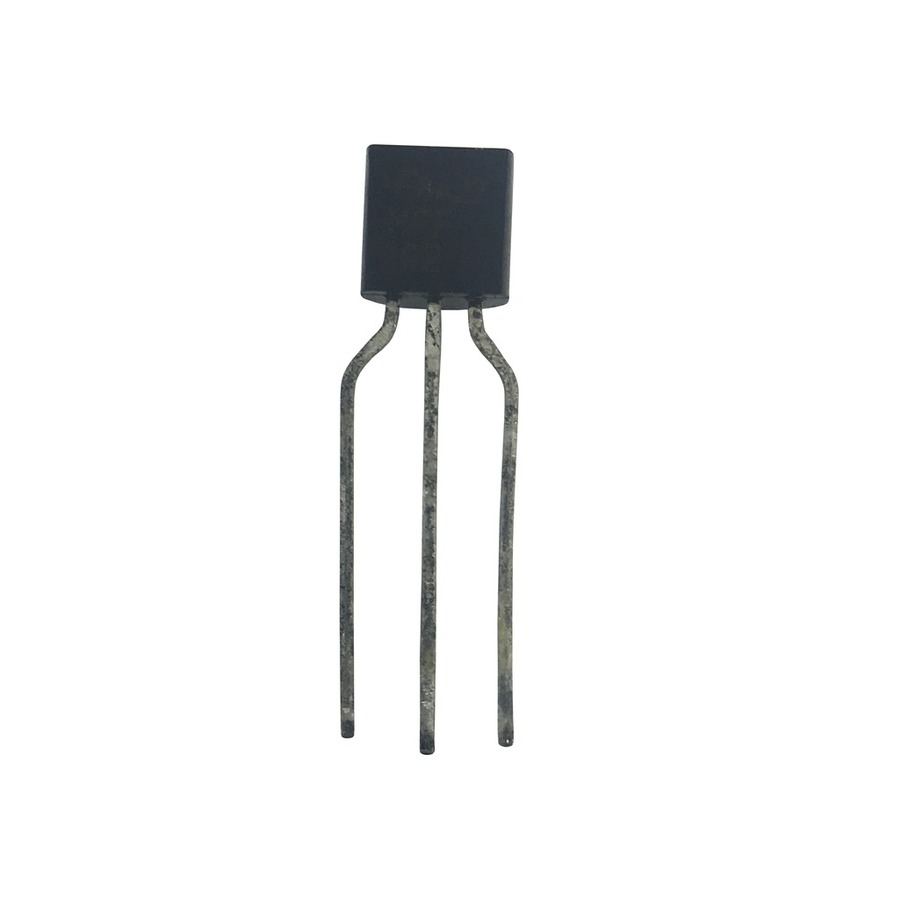

LM336-2.5 2.5V Voltage Reference TO-92 case
LM336-2.5 2.5V Voltage Reference TO-92 case

CAT. No. ZV1624

LM336-2.5 2.5V Voltage Reference TO-92 case
product image thumb

LM336-2.5 2.5V Voltage Reference TO-92 case

$3.95
Type Volt Amp Case LM336-2.5 2.5V ref 10mA TO-92...

Out of Stock

Description

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.  This device regulates voltage to an accurate reference value (2.5V)

TYPE: LM336

VOUT: 2.5V

IOUT: 10mA

CASE: TO-92


    Specifications

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 3.0E-4l
    Packaged Height
    		 0.3cm

    Active voltage regulator

    Regulator maximum current
    		 10mA
    Regulator polarity
    		 Positive
    Regulator package
    		 TO-92
    Regulator output voltage
    		 2.5V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    max temperature
    		 70°C
    component package
    		 square pack
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZV1624-dataSheetMain.pdf
