ATMEGA328P MCU IC with Arduino UNO Bootloader and 16MHz Crystal

$19.95
Build your very own customised Arduino compatible projects.

Out of Stock

Description

1 Year Warranty
Arduino® Compatible

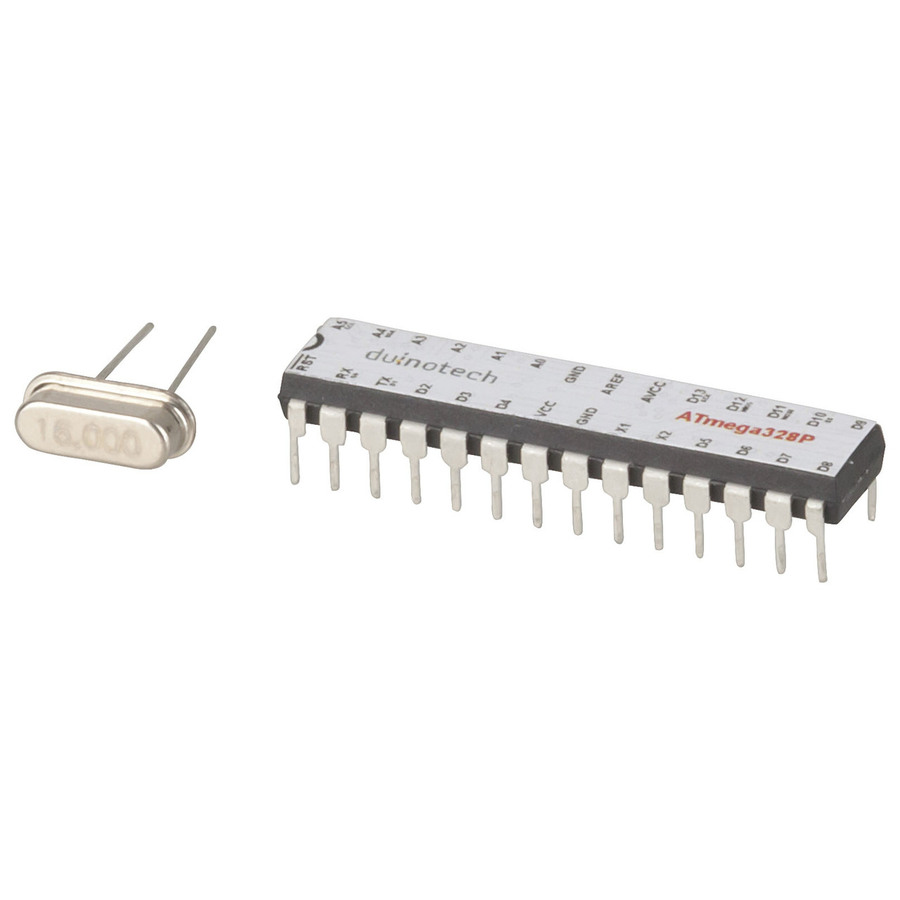

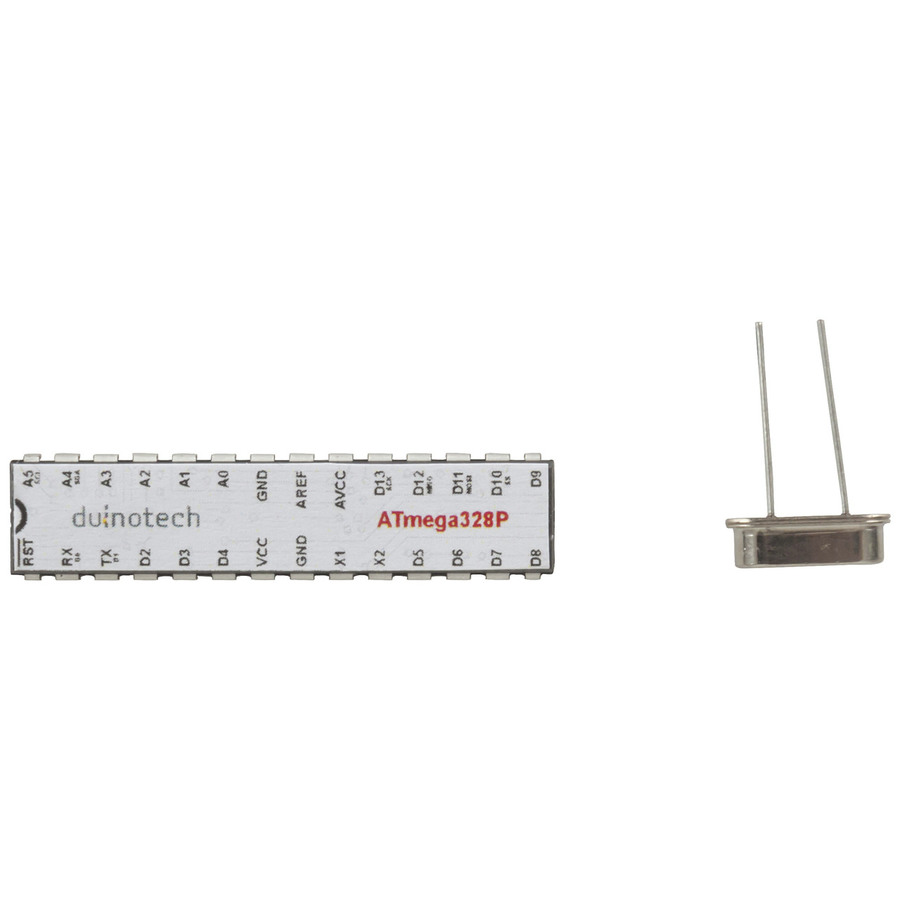

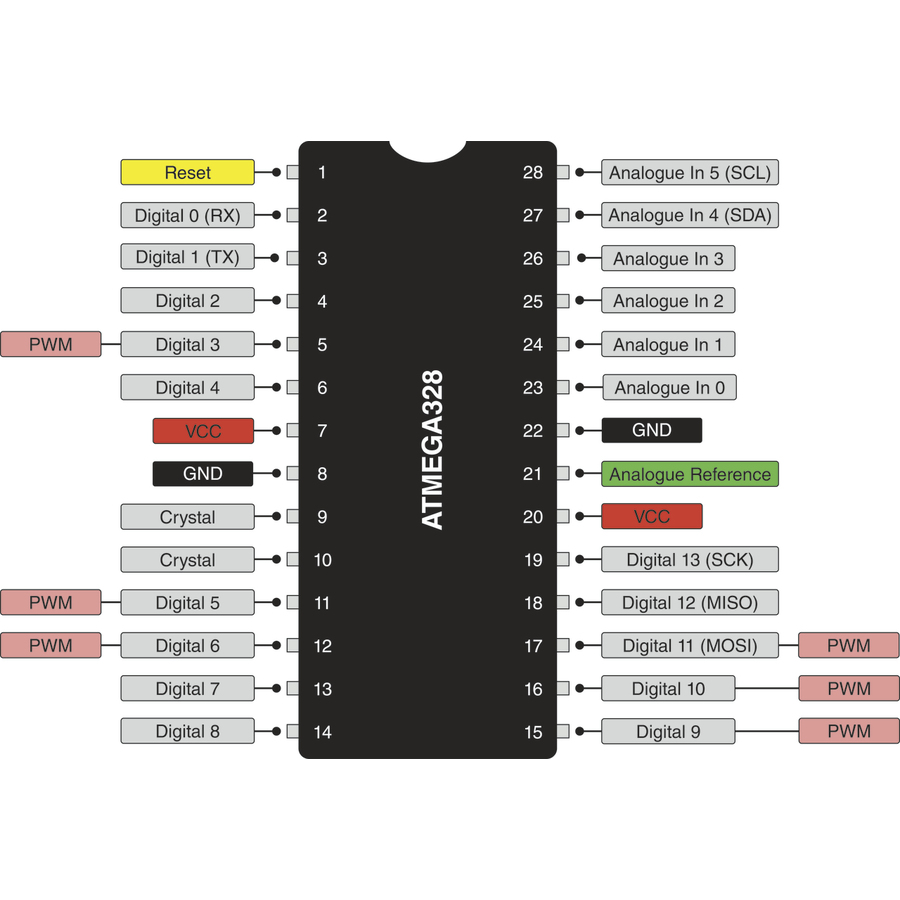

An Atmel AVR ATmega328P microcontroller for you to build your very own customised Arduino compatible projects. For your convenience it comes with the Arduino Uno bootloader pre-installed and features a label on top which details the pinouts. Includes 16MHz crystal oscillator.

• Same IO pins as Duinotech Uno Board
• 0 - 4MHz @ 1.8 - 5.5V, 0 - 10MHz @ 2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
• 28-pin DIP format for easy use in breadboards or Arduino compatible boards

Data Sheet: https://ww1.microchip.com/downloads/en/DeviceDoc/Atmel-42735-8-bit-AVR-Microcontroller-ATmega328-328P_Datasheet.pdf


    Specifications

    IC microcontroller

    micro A to D converter
    microcontroller brand
    		 Atmel
    microcontroller RAM
    		 2KB
    microcontroller boot loader
    microntroller program memory
    		 32KB
    microcontroller EEPROM
    		 1KB
    microcontroller ICSP

    Active Component

    Active marking code type
    		 Number code
    diameter of leg
    		 0.45mm
    minimum temperature
    		 -40°C
    Active number of legs
    		 28 count
    unique marking code
    		 ATMEGA328P
    max temperature
    		 105°C
    Active case colour
    		 white
    leg distance
    		 2.54mm

    microcontroller clock

    microcontroller clock harmonic

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 13.3cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.118503l
    Packaged Height
    		 1.1cm
    Warranty: 12 Months
