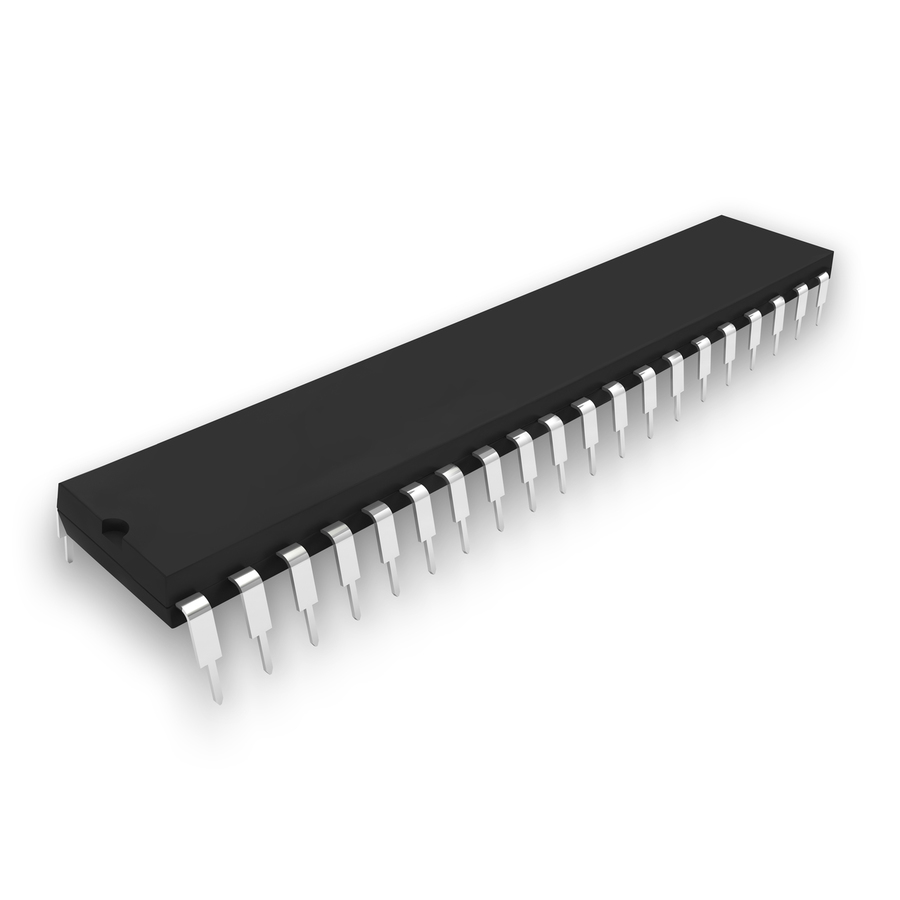

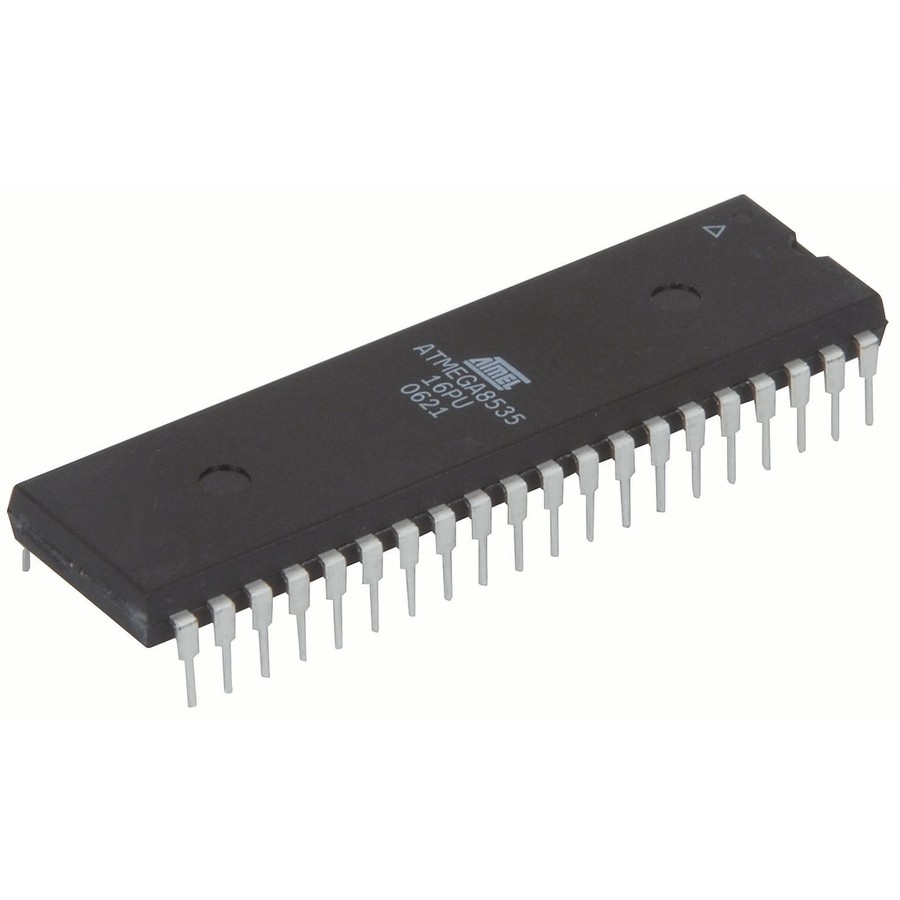

IC ATMEGA8535 AVR Dip40

$5.95
...

Out of Stock

Description

The ATmega8535 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing instructions in a single clock cycle, the ATmega8535 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Data Sheet: http://ww1.microchip.com/downloads/en/DeviceDoc/doc2502.pdf


    Specifications

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 1.7cm
    Packaged Weight
    		 0.007kg
    Packaged Volume
    		 0.0085l
    Packaged Height
    		 1cm

    IC microcontroller

    micro A to D converter
    microcontroller brand
    		 Atmel
    microcontroller RAM
    		 512B
    microcontroller boot loader
    microntroller program memory
    		 8KB
    microcontroller EEPROM
    		 512B
    microcontroller ICSP

    Active Component

    Active marking code type
    		 Number code
    Active mount type
    		 Through Hole
    diameter of leg
    		 0.45mm
    minimum temperature
    		 -55°C
    Active number of legs
    		 40 count
    unique marking code
    		 ATMEGA8535
    max temperature
    		 125°C
    component package
    		 DIL
    Active case colour
    		 Black
    Active connector type
    		 Solder Legs
    leg distance
    		 2.54mm
